Row

Row layout places all child containers in one row or column. It can be useful for creating lists of widgets.

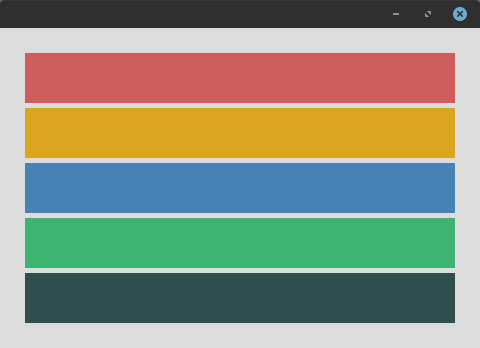

preview

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 50),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 50),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 50),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 50),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 50),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Spacing(5),
 80			widget.RowLayoutOpts.Padding(widget.NewInsetsSimple(25)),
 81		)),
 82	)
 83	root.AddChild(a)
 84	root.AddChild(b)
 85	root.AddChild(c)
 86	root.AddChild(d)
 87	root.AddChild(e)
 88
 89	return &Game{
 90		ui: &ebitenui.UI{Container: root},
 91	}
 92}
 93
 94func (g *Game) Update() error {
 95	g.ui.Update()
 96	return nil
 97}
 98
 99func (g *Game) Draw(screen *ebiten.Image) {
100	g.ui.Draw(screen)
101}
102
103func (g *Game) Layout(w, h int) (int, int) {
104	return w, h
105}
106
107func main() {
108	ebiten.SetWindowSize(480, 320)
109	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
110	if err := ebiten.RunGame(NewGame()); err != nil {
111		panic(err)
112	}
113}

Layout options

Direction

Responsible for whether child containers will follow each other in rows or columns.

Direction:

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9	)),
10)

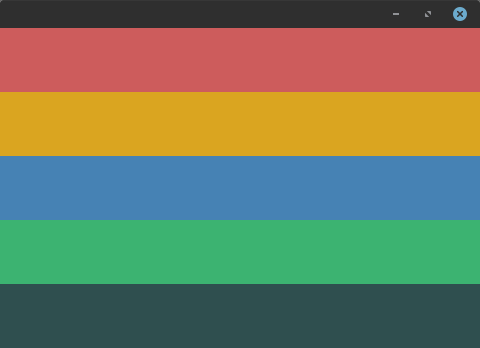

vert

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79		)),
 80	)
 81	root.AddChild(a)
 82	root.AddChild(b)
 83	root.AddChild(c)
 84	root.AddChild(d)
 85	root.AddChild(e)
 86
 87	return &Game{
 88		ui: &ebitenui.UI{Container: root},
 89	}
 90}
 91
 92func (g *Game) Update() error {
 93	g.ui.Update()
 94	return nil
 95}
 96
 97func (g *Game) Draw(screen *ebiten.Image) {
 98	g.ui.Draw(screen)
 99}
100
101func (g *Game) Layout(w, h int) (int, int) {
102	return w, h
103}
104
105func main() {
106	ebiten.SetWindowSize(480, 320)
107	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
108	if err := ebiten.RunGame(NewGame()); err != nil {
109		panic(err)
110	}
111}

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionHorizontal,
 8		),
 9	)),
10)

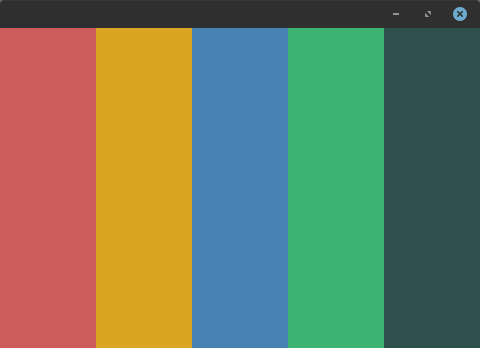

horz

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionHorizontal,
 78			),
 79		)),
 80	)
 81	root.AddChild(a)
 82	root.AddChild(b)
 83	root.AddChild(c)
 84	root.AddChild(d)
 85	root.AddChild(e)
 86
 87	return &Game{
 88		ui: &ebitenui.UI{Container: root},
 89	}
 90}
 91
 92func (g *Game) Update() error {
 93	g.ui.Update()
 94	return nil
 95}
 96
 97func (g *Game) Draw(screen *ebiten.Image) {
 98	g.ui.Draw(screen)
 99}
100
101func (g *Game) Layout(w, h int) (int, int) {
102	return w, h
103}
104
105func main() {
106	ebiten.SetWindowSize(480, 320)
107	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
108	if err := ebiten.RunGame(NewGame()); err != nil {
109		panic(err)
110	}
111}

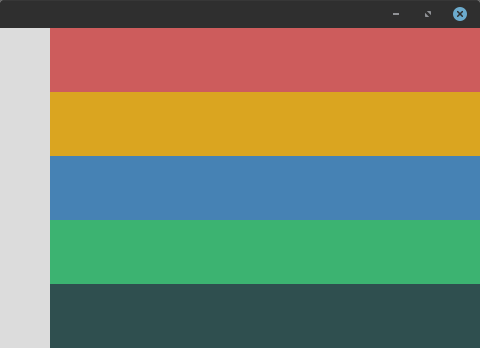

Padding

Layout allows you to specify padding for all child elements but not the itself. Please note that its not possible to specify padding at the end, so the direction will changed accordingly.

Padding:

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9		widget.RowLayoutOpts.Padding(widget.Insets{
10			Left: 50,
11		}),
12	)),
13)

lef

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Padding(widget.Insets{
 80				Left: 50,
 81			}),
 82		)),
 83	)
 84	root.AddChild(a)
 85	root.AddChild(b)
 86	root.AddChild(c)
 87	root.AddChild(d)
 88	root.AddChild(e)
 89
 90	return &Game{
 91		ui: &ebitenui.UI{Container: root},
 92	}
 93}
 94
 95func (g *Game) Update() error {
 96	g.ui.Update()
 97	return nil
 98}
 99
100func (g *Game) Draw(screen *ebiten.Image) {
101	g.ui.Draw(screen)
102}
103
104func (g *Game) Layout(w, h int) (int, int) {
105	return w, h
106}
107
108func main() {
109	ebiten.SetWindowSize(480, 320)
110	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
111	if err := ebiten.RunGame(NewGame()); err != nil {
112		panic(err)
113	}
114}

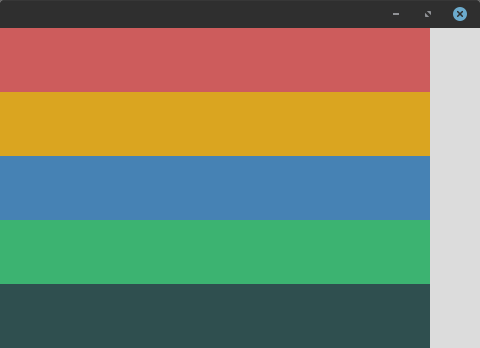

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9		widget.RowLayoutOpts.Padding(widget.Insets{
10			Right: 50,
11		}),
12	)),
13)

rig

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Padding(widget.Insets{
 80				Right: 50,
 81			}),
 82		)),
 83	)
 84	root.AddChild(a)
 85	root.AddChild(b)
 86	root.AddChild(c)
 87	root.AddChild(d)
 88	root.AddChild(e)
 89
 90	return &Game{
 91		ui: &ebitenui.UI{Container: root},
 92	}
 93}
 94
 95func (g *Game) Update() error {
 96	g.ui.Update()
 97	return nil
 98}
 99
100func (g *Game) Draw(screen *ebiten.Image) {
101	g.ui.Draw(screen)
102}
103
104func (g *Game) Layout(w, h int) (int, int) {
105	return w, h
106}
107
108func main() {
109	ebiten.SetWindowSize(480, 320)
110	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
111	if err := ebiten.RunGame(NewGame()); err != nil {
112		panic(err)
113	}
114}

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionHorizontal,
 8		),
 9		widget.RowLayoutOpts.Padding(widget.Insets{
10			Top: 50,
11		}),
12	)),
13)

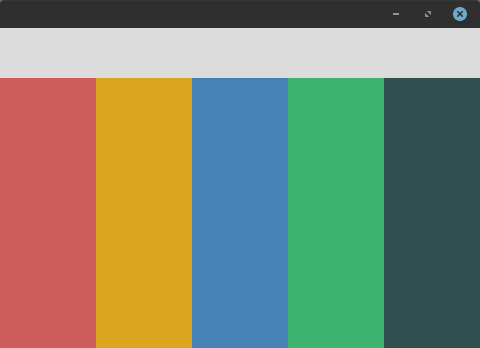

top

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionHorizontal,
 78			),
 79			widget.RowLayoutOpts.Padding(widget.Insets{
 80				Top: 50,
 81			}),
 82		)),
 83	)
 84	root.AddChild(a)
 85	root.AddChild(b)
 86	root.AddChild(c)
 87	root.AddChild(d)
 88	root.AddChild(e)
 89
 90	return &Game{
 91		ui: &ebitenui.UI{Container: root},
 92	}
 93}
 94
 95func (g *Game) Update() error {
 96	g.ui.Update()
 97	return nil
 98}
 99
100func (g *Game) Draw(screen *ebiten.Image) {
101	g.ui.Draw(screen)
102}
103
104func (g *Game) Layout(w, h int) (int, int) {
105	return w, h
106}
107
108func main() {
109	ebiten.SetWindowSize(480, 320)
110	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
111	if err := ebiten.RunGame(NewGame()); err != nil {
112		panic(err)
113	}
114}

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionHorizontal,
 8		),
 9		widget.RowLayoutOpts.Padding(widget.Insets{
10			Bottom: 50,
11		}),
12	)),
13)

top

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionHorizontal,
 78			),
 79			widget.RowLayoutOpts.Padding(widget.Insets{
 80				Bottom: 50,
 81			}),
 82		)),
 83	)
 84	root.AddChild(a)
 85	root.AddChild(b)
 86	root.AddChild(c)
 87	root.AddChild(d)
 88	root.AddChild(e)
 89
 90	return &Game{
 91		ui: &ebitenui.UI{Container: root},
 92	}
 93}
 94
 95func (g *Game) Update() error {
 96	g.ui.Update()
 97	return nil
 98}
 99
100func (g *Game) Draw(screen *ebiten.Image) {
101	g.ui.Draw(screen)
102}
103
104func (g *Game) Layout(w, h int) (int, int) {
105	return w, h
106}
107
108func main() {
109	ebiten.SetWindowSize(480, 320)
110	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
111	if err := ebiten.RunGame(NewGame()); err != nil {
112		panic(err)
113	}
114}

Spacing

Layout allows you to specify padding for all child elements but not the itself.

Spacing:

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9		widget.RowLayoutOpts.Spacing(0),
10	)),
11)

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Spacing(0),
 80		)),
 81	)
 82	root.AddChild(a)
 83	root.AddChild(b)
 84	root.AddChild(c)
 85	root.AddChild(d)
 86	root.AddChild(e)
 87
 88	return &Game{
 89		ui: &ebitenui.UI{Container: root},
 90	}
 91}
 92
 93func (g *Game) Update() error {
 94	g.ui.Update()
 95	return nil
 96}
 97
 98func (g *Game) Draw(screen *ebiten.Image) {
 99	g.ui.Draw(screen)
100}
101
102func (g *Game) Layout(w, h int) (int, int) {
103	return w, h
104}
105
106func main() {
107	ebiten.SetWindowSize(480, 320)
108	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
109	if err := ebiten.RunGame(NewGame()); err != nil {
110		panic(err)
111	}
112}

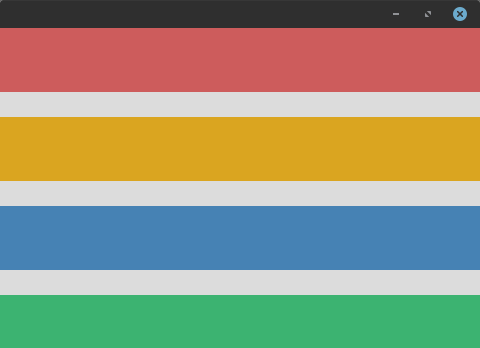

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9		widget.RowLayoutOpts.Spacing(25),
10	)),
11)

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Spacing(25),
 80		)),
 81	)
 82	root.AddChild(a)
 83	root.AddChild(b)
 84	root.AddChild(c)
 85	root.AddChild(d)
 86	root.AddChild(e)
 87
 88	return &Game{
 89		ui: &ebitenui.UI{Container: root},
 90	}
 91}
 92
 93func (g *Game) Update() error {
 94	g.ui.Update()
 95	return nil
 96}
 97
 98func (g *Game) Draw(screen *ebiten.Image) {
 99	g.ui.Draw(screen)
100}
101
102func (g *Game) Layout(w, h int) (int, int) {
103	return w, h
104}
105
106func main() {
107	ebiten.SetWindowSize(480, 320)
108	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
109	if err := ebiten.RunGame(NewGame()); err != nil {
110		panic(err)
111	}
112}

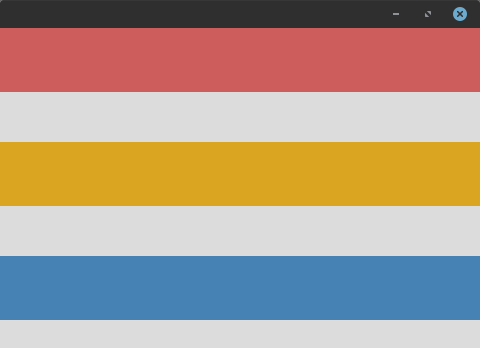

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),
 9		widget.RowLayoutOpts.Spacing(50),
10	)),
11)

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Spacing(50),
 80		)),
 81	)
 82	root.AddChild(a)
 83	root.AddChild(b)
 84	root.AddChild(c)
 85	root.AddChild(d)
 86	root.AddChild(e)
 87
 88	return &Game{
 89		ui: &ebitenui.UI{Container: root},
 90	}
 91}
 92
 93func (g *Game) Update() error {
 94	g.ui.Update()
 95	return nil
 96}
 97
 98func (g *Game) Draw(screen *ebiten.Image) {
 99	g.ui.Draw(screen)
100}
101
102func (g *Game) Layout(w, h int) (int, int) {
103	return w, h
104}
105
106func main() {
107	ebiten.SetWindowSize(480, 320)
108	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
109	if err := ebiten.RunGame(NewGame()); err != nil {
110		panic(err)
111	}
112}

 1root := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Gainsboro),
 4	),
 5	widget.ContainerOpts.Layout(widget.NewRowLayout(
 6		widget.RowLayoutOpts.Direction(
 7			widget.DirectionVertical,
 8		),

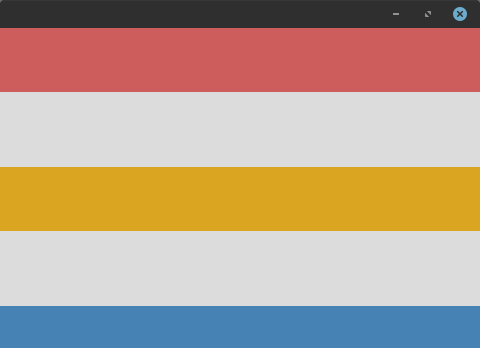

 9		widget.RowLayoutOpts.Spacing(75),
10	)),
11)

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: true,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: true,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: true,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: true,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79			widget.RowLayoutOpts.Spacing(75),
 80		)),
 81	)
 82	root.AddChild(a)
 83	root.AddChild(b)
 84	root.AddChild(c)
 85	root.AddChild(d)
 86	root.AddChild(e)
 87
 88	return &Game{
 89		ui: &ebitenui.UI{Container: root},
 90	}
 91}
 92
 93func (g *Game) Update() error {
 94	g.ui.Update()
 95	return nil
 96}
 97
 98func (g *Game) Draw(screen *ebiten.Image) {
 99	g.ui.Draw(screen)
100}
101
102func (g *Game) Layout(w, h int) (int, int) {
103	return w, h
104}
105
106func main() {
107	ebiten.SetWindowSize(480, 320)
108	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
109	if err := ebiten.RunGame(NewGame()); err != nil {
110		panic(err)
111	}
112}

Layout data

Stretch

Responsible for stretching the element along the entire length of the opposite axis.

Stretch:

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			Stretch: false,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

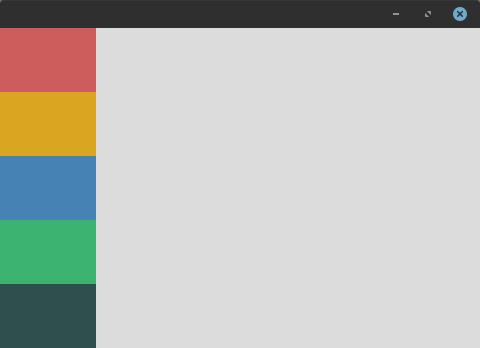

fal

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: false,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: false,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: false,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: false,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: false,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79		)),
 80	)
 81	root.AddChild(a)
 82	root.AddChild(b)
 83	root.AddChild(c)
 84	root.AddChild(d)
 85	root.AddChild(e)
 86
 87	return &Game{
 88		ui: &ebitenui.UI{Container: root},
 89	}
 90}
 91
 92func (g *Game) Update() error {
 93	g.ui.Update()
 94	return nil
 95}
 96
 97func (g *Game) Draw(screen *ebiten.Image) {
 98	g.ui.Draw(screen)
 99}
100
101func (g *Game) Layout(w, h int) (int, int) {
102	return w, h
103}
104
105func main() {
106	ebiten.SetWindowSize(480, 320)
107	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
108	if err := ebiten.RunGame(NewGame()); err != nil {
109		panic(err)
110	}
111}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			Stretch: true,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

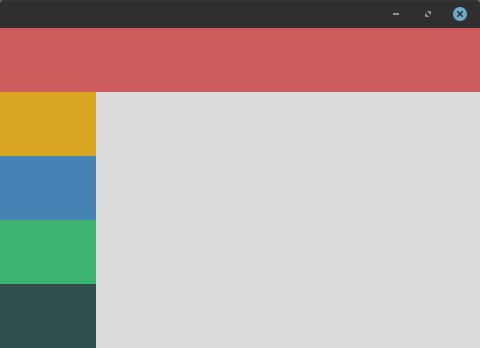

tru

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				Stretch: true,
 23			}),
 24			widget.WidgetOpts.MinSize(96, 64),
 25		),
 26	)
 27	b := widget.NewContainer(
 28		widget.ContainerOpts.BackgroundImage(
 29			image.NewNineSliceColor(colornames.Goldenrod),
 30		),
 31		widget.ContainerOpts.WidgetOpts(
 32			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 33				Stretch: false,
 34			}),
 35			widget.WidgetOpts.MinSize(96, 64),
 36		),
 37	)
 38	c := widget.NewContainer(
 39		widget.ContainerOpts.BackgroundImage(
 40			image.NewNineSliceColor(colornames.Steelblue),
 41		),
 42		widget.ContainerOpts.WidgetOpts(
 43			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 44				Stretch: false,
 45			}),
 46			widget.WidgetOpts.MinSize(96, 64),
 47		),
 48	)
 49	d := widget.NewContainer(
 50		widget.ContainerOpts.BackgroundImage(
 51			image.NewNineSliceColor(colornames.Mediumseagreen),
 52		),
 53		widget.ContainerOpts.WidgetOpts(
 54			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 55				Stretch: false,
 56			}),
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	e := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Darkslategray),
 63		),
 64		widget.ContainerOpts.WidgetOpts(
 65			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 66				Stretch: false,
 67			}),
 68			widget.WidgetOpts.MinSize(96, 64),
 69		),
 70	)
 71	root := widget.NewContainer(
 72		widget.ContainerOpts.BackgroundImage(
 73			image.NewNineSliceColor(colornames.Gainsboro),
 74		),
 75		widget.ContainerOpts.Layout(widget.NewRowLayout(
 76			widget.RowLayoutOpts.Direction(
 77				widget.DirectionVertical,
 78			),
 79		)),
 80	)
 81	root.AddChild(a)
 82	root.AddChild(b)
 83	root.AddChild(c)
 84	root.AddChild(d)
 85	root.AddChild(e)
 86
 87	return &Game{
 88		ui: &ebitenui.UI{Container: root},
 89	}
 90}
 91
 92func (g *Game) Update() error {
 93	g.ui.Update()
 94	return nil
 95}
 96
 97func (g *Game) Draw(screen *ebiten.Image) {
 98	g.ui.Draw(screen)
 99}
100
101func (g *Game) Layout(w, h int) (int, int) {
102	return w, h
103}
104
105func main() {
106	ebiten.SetWindowSize(480, 320)
107	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
108	if err := ebiten.RunGame(NewGame()); err != nil {
109		panic(err)
110	}
111}

Position

Responsible for aligning the element along the opposite axis if it is not stretched.

Position:

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			Position: widget.RowLayoutPositionStart,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

sta

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
22				Position: widget.RowLayoutPositionStart,
23			}),
24			widget.WidgetOpts.MinSize(96, 64),
25		),
26	)
27	b := widget.NewContainer(
28		widget.ContainerOpts.BackgroundImage(
29			image.NewNineSliceColor(colornames.Goldenrod),
30		),
31		widget.ContainerOpts.WidgetOpts(
32			widget.WidgetOpts.MinSize(96, 64),
33		),
34	)
35	c := widget.NewContainer(
36		widget.ContainerOpts.BackgroundImage(
37			image.NewNineSliceColor(colornames.Steelblue),
38		),
39		widget.ContainerOpts.WidgetOpts(
40			widget.WidgetOpts.MinSize(96, 64),
41		),
42	)
43	d := widget.NewContainer(
44		widget.ContainerOpts.BackgroundImage(
45			image.NewNineSliceColor(colornames.Mediumseagreen),
46		),
47		widget.ContainerOpts.WidgetOpts(
48			widget.WidgetOpts.MinSize(96, 64),
49		),
50	)
51	e := widget.NewContainer(
52		widget.ContainerOpts.BackgroundImage(
53			image.NewNineSliceColor(colornames.Darkslategray),
54		),
55		widget.ContainerOpts.WidgetOpts(
56			widget.WidgetOpts.MinSize(96, 64),
57		),
58	)
59	root := widget.NewContainer(
60		widget.ContainerOpts.BackgroundImage(
61			image.NewNineSliceColor(colornames.Gainsboro),
62		),
63		widget.ContainerOpts.Layout(widget.NewRowLayout(
64			widget.RowLayoutOpts.Direction(
65				widget.DirectionVertical,
66			),
67		)),
68	)
69	root.AddChild(a)
70	root.AddChild(b)
71	root.AddChild(c)
72	root.AddChild(d)
73	root.AddChild(e)
74
75	return &Game{
76		ui: &ebitenui.UI{Container: root},
77	}
78}
79
80func (g *Game) Update() error {
81	g.ui.Update()
82	return nil
83}
84
85func (g *Game) Draw(screen *ebiten.Image) {
86	g.ui.Draw(screen)
87}
88
89func (g *Game) Layout(w, h int) (int, int) {
90	return w, h
91}
92
93func main() {
94	ebiten.SetWindowSize(480, 320)
95	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
96	if err := ebiten.RunGame(NewGame()); err != nil {
97		panic(err)
98	}
99}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			Position: widget.RowLayoutPositionCenter,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

sta

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
22				Position: widget.RowLayoutPositionCenter,
23			}),
24			widget.WidgetOpts.MinSize(96, 64),
25		),
26	)
27	b := widget.NewContainer(
28		widget.ContainerOpts.BackgroundImage(
29			image.NewNineSliceColor(colornames.Goldenrod),
30		),
31		widget.ContainerOpts.WidgetOpts(
32			widget.WidgetOpts.MinSize(96, 64),
33		),
34	)
35	c := widget.NewContainer(
36		widget.ContainerOpts.BackgroundImage(
37			image.NewNineSliceColor(colornames.Steelblue),
38		),
39		widget.ContainerOpts.WidgetOpts(
40			widget.WidgetOpts.MinSize(96, 64),
41		),
42	)
43	d := widget.NewContainer(
44		widget.ContainerOpts.BackgroundImage(
45			image.NewNineSliceColor(colornames.Mediumseagreen),
46		),
47		widget.ContainerOpts.WidgetOpts(
48			widget.WidgetOpts.MinSize(96, 64),
49		),
50	)
51	e := widget.NewContainer(
52		widget.ContainerOpts.BackgroundImage(
53			image.NewNineSliceColor(colornames.Darkslategray),
54		),
55		widget.ContainerOpts.WidgetOpts(
56			widget.WidgetOpts.MinSize(96, 64),
57		),
58	)
59	root := widget.NewContainer(
60		widget.ContainerOpts.BackgroundImage(
61			image.NewNineSliceColor(colornames.Gainsboro),
62		),
63		widget.ContainerOpts.Layout(widget.NewRowLayout(
64			widget.RowLayoutOpts.Direction(
65				widget.DirectionVertical,
66			),
67		)),
68	)
69	root.AddChild(a)
70	root.AddChild(b)
71	root.AddChild(c)
72	root.AddChild(d)
73	root.AddChild(e)
74
75	return &Game{
76		ui: &ebitenui.UI{Container: root},
77	}
78}
79
80func (g *Game) Update() error {
81	g.ui.Update()
82	return nil
83}
84
85func (g *Game) Draw(screen *ebiten.Image) {
86	g.ui.Draw(screen)
87}
88
89func (g *Game) Layout(w, h int) (int, int) {
90	return w, h
91}
92
93func main() {
94	ebiten.SetWindowSize(480, 320)
95	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
96	if err := ebiten.RunGame(NewGame()); err != nil {
97		panic(err)
98	}
99}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			Position: widget.RowLayoutPositionEnd,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

sta

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
22				Position: widget.RowLayoutPositionEnd,
23			}),
24			widget.WidgetOpts.MinSize(96, 64),
25		),
26	)
27	b := widget.NewContainer(
28		widget.ContainerOpts.BackgroundImage(
29			image.NewNineSliceColor(colornames.Goldenrod),
30		),
31		widget.ContainerOpts.WidgetOpts(
32			widget.WidgetOpts.MinSize(96, 64),
33		),
34	)
35	c := widget.NewContainer(
36		widget.ContainerOpts.BackgroundImage(
37			image.NewNineSliceColor(colornames.Steelblue),
38		),
39		widget.ContainerOpts.WidgetOpts(
40			widget.WidgetOpts.MinSize(96, 64),
41		),
42	)
43	d := widget.NewContainer(
44		widget.ContainerOpts.BackgroundImage(
45			image.NewNineSliceColor(colornames.Mediumseagreen),
46		),
47		widget.ContainerOpts.WidgetOpts(
48			widget.WidgetOpts.MinSize(96, 64),
49		),
50	)
51	e := widget.NewContainer(
52		widget.ContainerOpts.BackgroundImage(
53			image.NewNineSliceColor(colornames.Darkslategray),
54		),
55		widget.ContainerOpts.WidgetOpts(
56			widget.WidgetOpts.MinSize(96, 64),
57		),
58	)
59	root := widget.NewContainer(
60		widget.ContainerOpts.BackgroundImage(
61			image.NewNineSliceColor(colornames.Gainsboro),
62		),
63		widget.ContainerOpts.Layout(widget.NewRowLayout(
64			widget.RowLayoutOpts.Direction(
65				widget.DirectionVertical,
66			),
67		)),
68	)
69	root.AddChild(a)
70	root.AddChild(b)
71	root.AddChild(c)
72	root.AddChild(d)
73	root.AddChild(e)
74
75	return &Game{
76		ui: &ebitenui.UI{Container: root},
77	}
78}
79
80func (g *Game) Update() error {
81	g.ui.Update()
82	return nil
83}
84
85func (g *Game) Draw(screen *ebiten.Image) {
86	g.ui.Draw(screen)
87}
88
89func (g *Game) Layout(w, h int) (int, int) {
90	return w, h
91}
92
93func main() {
94	ebiten.SetWindowSize(480, 320)
95	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
96	if err := ebiten.RunGame(NewGame()); err != nil {
97		panic(err)
98	}
99}

Max size

Responsible for the allowable size of the container.

Max:

1a := widget.NewContainer(
2	widget.ContainerOpts.BackgroundImage(
3		image.NewNineSliceColor(colornames.Indianred),
4	),
5	widget.ContainerOpts.WidgetOpts(
6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{}),
7		widget.WidgetOpts.MinSize(96, 64),
8	),
9)

wid

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{}),
22			widget.WidgetOpts.MinSize(96, 64),
23		),
24	)
25	b := widget.NewContainer(
26		widget.ContainerOpts.BackgroundImage(
27			image.NewNineSliceColor(colornames.Goldenrod),
28		),
29		widget.ContainerOpts.WidgetOpts(
30			widget.WidgetOpts.MinSize(96, 64),
31		),
32	)
33	c := widget.NewContainer(
34		widget.ContainerOpts.BackgroundImage(
35			image.NewNineSliceColor(colornames.Steelblue),
36		),
37		widget.ContainerOpts.WidgetOpts(
38			widget.WidgetOpts.MinSize(96, 64),
39		),
40	)
41	d := widget.NewContainer(
42		widget.ContainerOpts.BackgroundImage(
43			image.NewNineSliceColor(colornames.Mediumseagreen),
44		),
45		widget.ContainerOpts.WidgetOpts(
46			widget.WidgetOpts.MinSize(96, 64),
47		),
48	)
49	e := widget.NewContainer(
50		widget.ContainerOpts.BackgroundImage(
51			image.NewNineSliceColor(colornames.Darkslategray),
52		),
53		widget.ContainerOpts.WidgetOpts(
54			widget.WidgetOpts.MinSize(96, 64),
55		),
56	)
57	root := widget.NewContainer(
58		widget.ContainerOpts.BackgroundImage(
59			image.NewNineSliceColor(colornames.Gainsboro),
60		),
61		widget.ContainerOpts.Layout(widget.NewRowLayout(
62			widget.RowLayoutOpts.Direction(
63				widget.DirectionVertical,
64			),
65		)),
66	)
67	root.AddChild(a)
68	root.AddChild(b)
69	root.AddChild(c)
70	root.AddChild(d)
71	root.AddChild(e)
72
73	return &Game{
74		ui: &ebitenui.UI{Container: root},
75	}
76}
77
78func (g *Game) Update() error {
79	g.ui.Update()
80	return nil
81}
82
83func (g *Game) Draw(screen *ebiten.Image) {
84	g.ui.Draw(screen)
85}
86
87func (g *Game) Layout(w, h int) (int, int) {
88	return w, h
89}
90
91func main() {
92	ebiten.SetWindowSize(480, 320)
93	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
94	if err := ebiten.RunGame(NewGame()); err != nil {
95		panic(err)
96	}
97}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			MaxWidth: 20,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

wid

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
22				MaxWidth: 20,
23			}),
24			widget.WidgetOpts.MinSize(96, 64),
25		),
26	)
27	b := widget.NewContainer(
28		widget.ContainerOpts.BackgroundImage(
29			image.NewNineSliceColor(colornames.Goldenrod),
30		),
31		widget.ContainerOpts.WidgetOpts(
32			widget.WidgetOpts.MinSize(96, 64),
33		),
34	)
35	c := widget.NewContainer(
36		widget.ContainerOpts.BackgroundImage(
37			image.NewNineSliceColor(colornames.Steelblue),
38		),
39		widget.ContainerOpts.WidgetOpts(
40			widget.WidgetOpts.MinSize(96, 64),
41		),
42	)
43	d := widget.NewContainer(
44		widget.ContainerOpts.BackgroundImage(
45			image.NewNineSliceColor(colornames.Mediumseagreen),
46		),
47		widget.ContainerOpts.WidgetOpts(
48			widget.WidgetOpts.MinSize(96, 64),
49		),
50	)
51	e := widget.NewContainer(
52		widget.ContainerOpts.BackgroundImage(
53			image.NewNineSliceColor(colornames.Darkslategray),
54		),
55		widget.ContainerOpts.WidgetOpts(
56			widget.WidgetOpts.MinSize(96, 64),
57		),
58	)
59	root := widget.NewContainer(
60		widget.ContainerOpts.BackgroundImage(
61			image.NewNineSliceColor(colornames.Gainsboro),
62		),
63		widget.ContainerOpts.Layout(widget.NewRowLayout(
64			widget.RowLayoutOpts.Direction(
65				widget.DirectionVertical,
66			),
67		)),
68	)
69	root.AddChild(a)
70	root.AddChild(b)
71	root.AddChild(c)
72	root.AddChild(d)
73	root.AddChild(e)
74
75	return &Game{
76		ui: &ebitenui.UI{Container: root},
77	}
78}
79
80func (g *Game) Update() error {
81	g.ui.Update()
82	return nil
83}
84
85func (g *Game) Draw(screen *ebiten.Image) {
86	g.ui.Draw(screen)
87}
88
89func (g *Game) Layout(w, h int) (int, int) {
90	return w, h
91}
92
93func main() {
94	ebiten.SetWindowSize(480, 320)
95	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
96	if err := ebiten.RunGame(NewGame()); err != nil {
97		panic(err)
98	}
99}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			MaxHeight: 20,
 8		}),
 9		widget.WidgetOpts.MinSize(96, 64),
10	),
11)

hei

Full example

 1package main
 2
 3import (
 4	"github.com/ebitenui/ebitenui"
 5	"github.com/ebitenui/ebitenui/image"
 6	"github.com/ebitenui/ebitenui/widget"
 7	"github.com/hajimehoshi/ebiten/v2"
 8	"golang.org/x/image/colornames"
 9)
10
11type Game struct {
12	ui *ebitenui.UI
13}
14
15func NewGame() *Game {
16	a := widget.NewContainer(
17		widget.ContainerOpts.BackgroundImage(
18			image.NewNineSliceColor(colornames.Indianred),
19		),
20		widget.ContainerOpts.WidgetOpts(
21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
22				MaxHeight: 20,
23			}),
24			widget.WidgetOpts.MinSize(96, 64),
25		),
26	)
27	b := widget.NewContainer(
28		widget.ContainerOpts.BackgroundImage(
29			image.NewNineSliceColor(colornames.Goldenrod),
30		),
31		widget.ContainerOpts.WidgetOpts(
32			widget.WidgetOpts.MinSize(96, 64),
33		),
34	)
35	c := widget.NewContainer(
36		widget.ContainerOpts.BackgroundImage(
37			image.NewNineSliceColor(colornames.Steelblue),
38		),
39		widget.ContainerOpts.WidgetOpts(
40			widget.WidgetOpts.MinSize(96, 64),
41		),
42	)
43	d := widget.NewContainer(
44		widget.ContainerOpts.BackgroundImage(
45			image.NewNineSliceColor(colornames.Mediumseagreen),
46		),
47		widget.ContainerOpts.WidgetOpts(
48			widget.WidgetOpts.MinSize(96, 64),
49		),
50	)
51	e := widget.NewContainer(
52		widget.ContainerOpts.BackgroundImage(
53			image.NewNineSliceColor(colornames.Darkslategray),
54		),
55		widget.ContainerOpts.WidgetOpts(
56			widget.WidgetOpts.MinSize(96, 64),
57		),
58	)
59	root := widget.NewContainer(
60		widget.ContainerOpts.BackgroundImage(
61			image.NewNineSliceColor(colornames.Gainsboro),
62		),
63		widget.ContainerOpts.Layout(widget.NewRowLayout(
64			widget.RowLayoutOpts.Direction(
65				widget.DirectionVertical,
66			),
67		)),
68	)
69	root.AddChild(a)
70	root.AddChild(b)
71	root.AddChild(c)
72	root.AddChild(d)
73	root.AddChild(e)
74
75	return &Game{
76		ui: &ebitenui.UI{Container: root},
77	}
78}
79
80func (g *Game) Update() error {
81	g.ui.Update()
82	return nil
83}
84
85func (g *Game) Draw(screen *ebiten.Image) {
86	g.ui.Draw(screen)
87}
88
89func (g *Game) Layout(w, h int) (int, int) {
90	return w, h
91}
92
93func main() {
94	ebiten.SetWindowSize(480, 320)
95	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
96	if err := ebiten.RunGame(NewGame()); err != nil {
97		panic(err)
98	}
99}

 1a := widget.NewContainer(
 2	widget.ContainerOpts.BackgroundImage(
 3		image.NewNineSliceColor(colornames.Indianred),
 4	),
 5	widget.ContainerOpts.WidgetOpts(
 6		widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 7			MaxWidth:  20,
 8			MaxHeight: 20,
 9		}),
10		widget.WidgetOpts.MinSize(96, 64),
11	),
12)

wid

Full example

  1package main
  2
  3import (
  4	"github.com/ebitenui/ebitenui"
  5	"github.com/ebitenui/ebitenui/image"
  6	"github.com/ebitenui/ebitenui/widget"
  7	"github.com/hajimehoshi/ebiten/v2"
  8	"golang.org/x/image/colornames"
  9)
 10
 11type Game struct {
 12	ui *ebitenui.UI
 13}
 14
 15func NewGame() *Game {
 16	a := widget.NewContainer(
 17		widget.ContainerOpts.BackgroundImage(
 18			image.NewNineSliceColor(colornames.Indianred),
 19		),
 20		widget.ContainerOpts.WidgetOpts(
 21			widget.WidgetOpts.LayoutData(widget.RowLayoutData{
 22				MaxWidth:  20,
 23				MaxHeight: 20,
 24			}),
 25			widget.WidgetOpts.MinSize(96, 64),
 26		),
 27	)
 28	b := widget.NewContainer(
 29		widget.ContainerOpts.BackgroundImage(
 30			image.NewNineSliceColor(colornames.Goldenrod),
 31		),
 32		widget.ContainerOpts.WidgetOpts(
 33			widget.WidgetOpts.MinSize(96, 64),
 34		),
 35	)
 36	c := widget.NewContainer(
 37		widget.ContainerOpts.BackgroundImage(
 38			image.NewNineSliceColor(colornames.Steelblue),
 39		),
 40		widget.ContainerOpts.WidgetOpts(
 41			widget.WidgetOpts.MinSize(96, 64),
 42		),
 43	)
 44	d := widget.NewContainer(
 45		widget.ContainerOpts.BackgroundImage(
 46			image.NewNineSliceColor(colornames.Mediumseagreen),
 47		),
 48		widget.ContainerOpts.WidgetOpts(
 49			widget.WidgetOpts.MinSize(96, 64),
 50		),
 51	)
 52	e := widget.NewContainer(
 53		widget.ContainerOpts.BackgroundImage(
 54			image.NewNineSliceColor(colornames.Darkslategray),
 55		),
 56		widget.ContainerOpts.WidgetOpts(
 57			widget.WidgetOpts.MinSize(96, 64),
 58		),
 59	)
 60	root := widget.NewContainer(
 61		widget.ContainerOpts.BackgroundImage(
 62			image.NewNineSliceColor(colornames.Gainsboro),
 63		),
 64		widget.ContainerOpts.Layout(widget.NewRowLayout(
 65			widget.RowLayoutOpts.Direction(
 66				widget.DirectionVertical,
 67			),
 68		)),
 69	)
 70	root.AddChild(a)
 71	root.AddChild(b)
 72	root.AddChild(c)
 73	root.AddChild(d)
 74	root.AddChild(e)
 75
 76	return &Game{
 77		ui: &ebitenui.UI{Container: root},
 78	}
 79}
 80
 81func (g *Game) Update() error {
 82	g.ui.Update()
 83	return nil
 84}
 85
 86func (g *Game) Draw(screen *ebiten.Image) {
 87	g.ui.Draw(screen)
 88}
 89
 90func (g *Game) Layout(w, h int) (int, int) {
 91	return w, h
 92}
 93
 94func main() {
 95	ebiten.SetWindowSize(480, 320)
 96	ebiten.SetWindowResizingMode(ebiten.WindowResizingModeEnabled)
 97	if err := ebiten.RunGame(NewGame()); err != nil {
 98		panic(err)
 99	}
100}
